3D Solid Elements: Tetrahedrons and Hexahedrons#

This chapter derives the mathematics behind the 3D solid elements in femlabpy.elements.solids. We begin with the fundamental strain-displacement relations in three dimensions, then specialize to the 4-node tetrahedron (T4) and 8-node hexahedron (H8).

Preliminaries: 3D Elasticity#

Strain tensor#

For a displacement field \(\mathbf{u} = [u, v, w]^T\) in three dimensions, the infinitesimal strain tensor under small deformation assumptions is:

\[ \boldsymbol{\varepsilon} = \frac{1}{2}\left( \nabla \mathbf{u} + (\nabla \mathbf{u})^T \right) \]

Expanding this in Cartesian coordinates yields six independent strain components. Using Voigt notation, we arrange them as:

\[\begin{split} \boldsymbol{\varepsilon} = \begin{bmatrix} \varepsilon_{xx} \\ \varepsilon_{yy} \\ \varepsilon_{zz} \\ \gamma_{xy} \\ \gamma_{yz} \\ \gamma_{zx} \end{bmatrix} = \begin{bmatrix} \frac{\partial u}{\partial x} \\ \frac{\partial v}{\partial y} \\ \frac{\partial w}{\partial z} \\ \frac{\partial u}{\partial y} + \frac{\partial v}{\partial x} \\ \frac{\partial v}{\partial z} + \frac{\partial w}{\partial y} \\ \frac{\partial w}{\partial x} + \frac{\partial u}{\partial z} \end{bmatrix} \end{split}\]

Constitutive relation#

For isotropic linear elasticity, the stress-strain relation is:

\[ \boldsymbol{\sigma} = \mathbf{D} \boldsymbol{\varepsilon} \]

where the \(6 \times 6\) elasticity matrix \(\mathbf{D}\) is:

\[\begin{split} \mathbf{D} = \frac{E}{(1+\nu)(1-2\nu)} \begin{bmatrix} 1-\nu & \nu & \nu & 0 & 0 & 0 \\ \nu & 1-\nu & \nu & 0 & 0 & 0 \\ \nu & \nu & 1-\nu & 0 & 0 & 0 \\ 0 & 0 & 0 & \frac{1-2\nu}{2} & 0 & 0 \\ 0 & 0 & 0 & 0 & \frac{1-2\nu}{2} & 0 \\ 0 & 0 & 0 & 0 & 0 & \frac{1-2\nu}{2} \end{bmatrix} \end{split}\]

This matrix is implemented in _elastic3d_matrix(Ge) where Ge = [E, nu].

1. The 4-Node Tetrahedron Element (T4)#

../_images/fig_t4_element.png

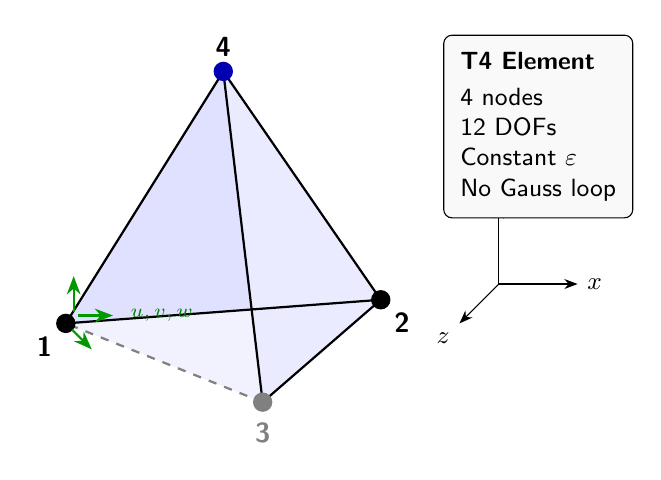

Figure 6.1: 4-node tetrahedron (T4) element with 3 translational DOFs per node. Dashed edge indicates hidden line.#

The T4 element has 4 nodes with 3 DOFs each, giving 12 element DOFs total. The topology row is [n1, n2, n3, n4, mat_id].

1.1 Shape functions#

The T4 uses volume (barycentric) coordinates \(L_1, L_2, L_3, L_4\) as shape functions. For a point \(\mathbf{x}\) inside the tetrahedron with vertices \(\mathbf{x}_1, \mathbf{x}_2, \mathbf{x}_3, \mathbf{x}_4\):

\[ N_i(\mathbf{x}) = L_i = \frac{V_i}{V} \]

where \(V\) is the total volume and \(V_i\) is the volume of the sub-tetrahedron formed by replacing vertex \(i\) with point \(\mathbf{x}\).

The volume of a tetrahedron with vertices at \(\mathbf{x}_1, \mathbf{x}_2, \mathbf{x}_3, \mathbf{x}_4\) is:

\[\begin{split} V = \frac{1}{6} \det \begin{bmatrix} x_2 - x_1 & x_3 - x_1 & x_4 - x_1 \\ y_2 - y_1 & y_3 - y_1 & y_4 - y_1 \\ z_2 - z_1 & z_3 - z_1 & z_4 - z_1 \end{bmatrix} = \frac{1}{6} \det(\mathbf{J}) \end{split}\]

Since \(L_1 + L_2 + L_3 + L_4 = 1\), we can parameterize with three independent coordinates. The parent-space derivatives are constant:

\[\begin{split} \frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}} = \begin{bmatrix} \frac{\partial N_1}{\partial \xi} & \frac{\partial N_2}{\partial \xi} & \frac{\partial N_3}{\partial \xi} & \frac{\partial N_4}{\partial \xi} \\ \frac{\partial N_1}{\partial \eta} & \frac{\partial N_2}{\partial \eta} & \frac{\partial N_3}{\partial \eta} & \frac{\partial N_4}{\partial \eta} \\ \frac{\partial N_1}{\partial \zeta} & \frac{\partial N_2}{\partial \zeta} & \frac{\partial N_3}{\partial \zeta} & \frac{\partial N_4}{\partial \zeta} \end{bmatrix} = \begin{bmatrix} 1 & 0 & 0 & -1 \\ 0 & 1 & 0 & -1 \\ 0 & 0 & 1 & -1 \end{bmatrix} \end{split}\]

1.2 Jacobian and physical derivatives#

The Jacobian matrix maps parent coordinates to physical coordinates:

\[ \mathbf{J} = \frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}} \cdot \mathbf{X}_e \]

where \(\mathbf{X}_e\) is the \(4 \times 3\) nodal coordinate matrix. The physical-space shape function derivatives are:

\[ \frac{\partial \mathbf{N}}{\partial \mathbf{x}} = \mathbf{J}^{-1} \frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}} \]

In code, this is computed via np.linalg.solve(J, dN) to avoid explicit inversion.

1.3 Strain-displacement matrix#

For 3D solids, the element displacement vector is:

\[ \mathbf{u}^e = [u_1, v_1, w_1, u_2, v_2, w_2, u_3, v_3, w_3, u_4, v_4, w_4]^T \]

The \(6 \times 12\) strain-displacement matrix \(\mathbf{B}\) relates strain to nodal displacements:

\[ \boldsymbol{\varepsilon} = \mathbf{B} \mathbf{u}^e \]

For node \(i\) with shape function derivatives \(\frac{\partial N_i}{\partial x}, \frac{\partial N_i}{\partial y}, \frac{\partial N_i}{\partial z}\), the contribution to \(\mathbf{B}\) is:

\[\begin{split} \mathbf{B}_i = \begin{bmatrix} \frac{\partial N_i}{\partial x} & 0 & 0 \\ 0 & \frac{\partial N_i}{\partial y} & 0 \\ 0 & 0 & \frac{\partial N_i}{\partial z} \\ \frac{\partial N_i}{\partial y} & \frac{\partial N_i}{\partial x} & 0 \\ 0 & \frac{\partial N_i}{\partial z} & \frac{\partial N_i}{\partial y} \\ \frac{\partial N_i}{\partial z} & 0 & \frac{\partial N_i}{\partial x} \end{bmatrix} \end{split}\]

The full matrix is \(\mathbf{B} = [\mathbf{B}_1 | \mathbf{B}_2 | \mathbf{B}_3 | \mathbf{B}_4]\).

1.4 Element stiffness matrix#

The element stiffness matrix is derived from the principle of virtual work. The strain energy is:

\[ U = \frac{1}{2} \int_V \boldsymbol{\varepsilon}^T \boldsymbol{\sigma} \, dV = \frac{1}{2} \int_V \boldsymbol{\varepsilon}^T \mathbf{D} \boldsymbol{\varepsilon} \, dV \]

Substituting \(\boldsymbol{\varepsilon} = \mathbf{B} \mathbf{u}^e\):

\[ U = \frac{1}{2} (\mathbf{u}^e)^T \underbrace{\int_V \mathbf{B}^T \mathbf{D} \mathbf{B} \, dV}_{\mathbf{K}^e} \mathbf{u}^e \]

Since \(\mathbf{B}\) and \(\mathbf{D}\) are constant over the T4 element, the integral simplifies:

\[ \mathbf{K}^e = \mathbf{B}^T \mathbf{D} \mathbf{B} \cdot V = \mathbf{B}^T \mathbf{D} \mathbf{B} \cdot \frac{1}{6} |\det(\mathbf{J})| \]

In code, the factor appears as 2.0 * det(J) due to the reference tetrahedron mapping convention.

1.5 Internal force vector#

For a given displacement \(\mathbf{u}^e\), the internal force vector is:

\[ \mathbf{q}^e = \int_V \mathbf{B}^T \boldsymbol{\sigma} \, dV = \int_V \mathbf{B}^T \mathbf{D} \boldsymbol{\varepsilon} \, dV \]

With constant strain:

\[ \mathbf{q}^e = \mathbf{B}^T \mathbf{D} (\mathbf{B} \mathbf{u}^e) \cdot V \]

2. The 8-Node Hexahedron Element (H8)#

The H8 element is the trilinear brick with 8 nodes and 24 DOFs.Unlike T4, the strain field varies within the element, requiring numerical integration.

2.1 Trilinear shape functions#

The parent domain is the cube \([-1,1]^3\) with natural coordinates \((\xi, \eta, \zeta)\). The eight shape functions are tensor products of 1D linear functions:

\[ N_i(\xi, \eta, \zeta) = \frac{1}{8}(1 + \xi_i \xi)(1 + \eta_i \eta)(1 + \zeta_i \zeta) \]

where \((\xi_i, \eta_i, \zeta_i)\) are the corner coordinates of node \(i\):

Node

\(\xi_i\)

\(\eta_i\)

\(\zeta_i\)

1

-1

-1

-1

2

+1

-1

-1

3

+1

+1

-1

4

-1

+1

-1

5

-1

-1

+1

6

+1

-1

+1

7

+1

+1

+1

8

-1

+1

+1

2.2 Shape function derivatives#

The parent-space derivatives are:

\[ \frac{\partial N_i}{\partial \xi} = \frac{\xi_i}{8}(1 + \eta_i \eta)(1 + \zeta_i \zeta) \]
\[ \frac{\partial N_i}{\partial \eta} = \frac{\eta_i}{8}(1 + \xi_i \xi)(1 + \zeta_i \zeta) \]
\[ \frac{\partial N_i}{\partial \zeta} = \frac{\zeta_i}{8}(1 + \xi_i \xi)(1 + \eta_i \eta) \]

These vary with position, unlike T4.

2.3 Isoparametric mapping#

Physical coordinates are interpolated from nodal coordinates:

\[ \mathbf{x}(\xi, \eta, \zeta) = \sum_{i=1}^{8} N_i(\xi, \eta, \zeta) \mathbf{x}_i \]

The Jacobian matrix at each point is:

\[\begin{split} \mathbf{J} = \begin{bmatrix} \frac{\partial x}{\partial \xi} & \frac{\partial y}{\partial \xi} & \frac{\partial z}{\partial \xi} \\ \frac{\partial x}{\partial \eta} & \frac{\partial y}{\partial \eta} & \frac{\partial z}{\partial \eta} \\ \frac{\partial x}{\partial \zeta} & \frac{\partial y}{\partial \zeta} & \frac{\partial z}{\partial \zeta} \end{bmatrix} = \frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}} \cdot \mathbf{X}_e \end{split}\]

Physical derivatives are obtained by solving:

\[ \frac{\partial \mathbf{N}}{\partial \mathbf{x}} = \mathbf{J}^{-1} \frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}} \]

2.4 Gauss-Legendre integration#

Since the integrand varies within the element, we use numerical quadrature:

\[ \mathbf{K}^e = \int_{-1}^{1} \int_{-1}^{1} \int_{-1}^{1} \mathbf{B}^T \mathbf{D} \mathbf{B} \, |\det(\mathbf{J})| \, d\xi \, d\eta \, d\zeta \]

The \(2 \times 2 \times 2\) Gauss rule uses 8 points at \(\xi, \eta, \zeta = \pm 1/\sqrt{3}\) with unit weights:

\[ \mathbf{K}^e = \sum_{g=1}^{8} w_g \, \mathbf{B}_g^T \mathbf{D} \mathbf{B}_g \, |\det(\mathbf{J}_g)| \]

For the standard 2-point rule, \(w_g = 1\) for all points.

2.5 Stiffness matrix computation#

At each Gauss point \(g\):

  1. Evaluate parent derivatives \(\frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}}\big|_g\)

  2. Compute Jacobian \(\mathbf{J}_g = \frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}}\big|_g \cdot \mathbf{X}_e\)

  3. Solve for physical derivatives \(\frac{\partial \mathbf{N}}{\partial \mathbf{x}}\big|_g = \mathbf{J}_g^{-1} \frac{\partial \mathbf{N}}{\partial \boldsymbol{\xi}}\big|_g\)

  4. Build \(\mathbf{B}_g\) from the physical derivatives

  5. Accumulate \(\mathbf{K}^e \mathrel{+}= \mathbf{B}_g^T \mathbf{D} \mathbf{B}_g \cdot |\det(\mathbf{J}_g)|\)

In code, this is vectorized using np.einsum over all Gauss points simultaneously.

2.6 Stress recovery#

At each Gauss point, strain and stress are:

\[ \boldsymbol{\varepsilon}_g = \mathbf{B}_g \mathbf{u}^e, \quad \boldsymbol{\sigma}_g = \mathbf{D} \boldsymbol{\varepsilon}_g \]

The internal force vector is assembled as:

\[ \mathbf{q}^e = \sum_{g=1}^{8} \mathbf{B}_g^T \boldsymbol{\sigma}_g \, |\det(\mathbf{J}_g)| \]

3. Implementation Notes#

Code structure#

Function

Description

keT4e

T4 element stiffness (single element)

qeT4e

T4 internal force and stress recovery

kT4e

T4 batch assembly to global stiffness

qT4e

T4 batch internal force assembly

keh8e

H8 element stiffness (single element)

qeh8e

H8 internal force and stress recovery

kh8e

H8 batch assembly to global stiffness

qh8e

H8 batch internal force assembly

Design principles#

  1. No cached state: Every call recomputes geometry from Xe and material from Ge

  2. Vectorized loops: Batch routines use np.einsum instead of Python loops

  3. Explicit indexing: DOF scatter uses element_dof_indices plus np.add.at
